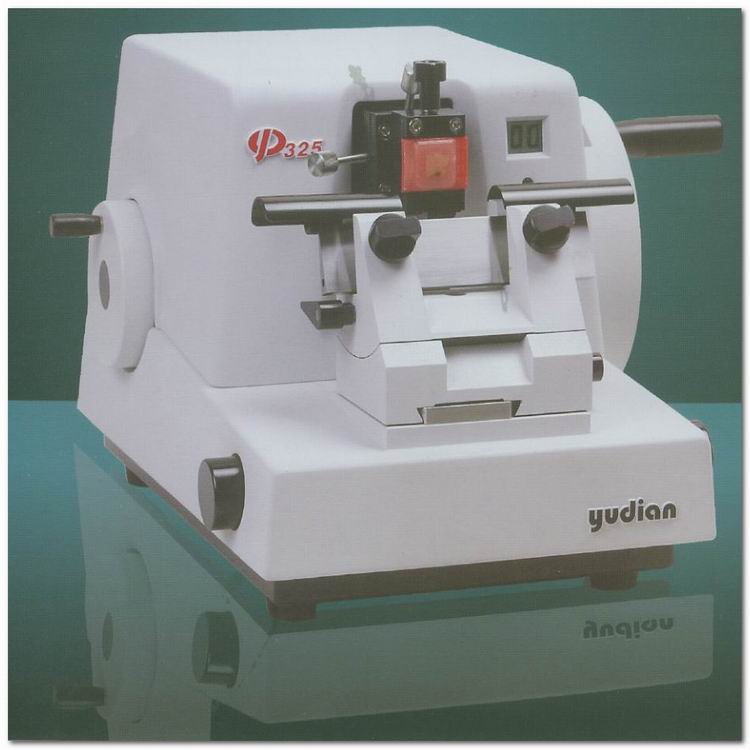

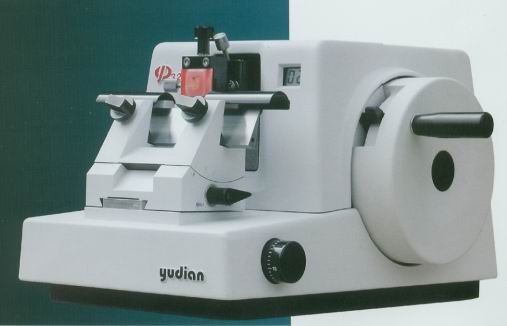

JYD-325型轮转切片机 病理组织切片机 厂家直销
全机设计融入人机工程学构思，舒适感好，长时间操作无疲劳感。
全新柔性导轨、微进机构可持久润滑和自动调节，无需加油和经常维护。

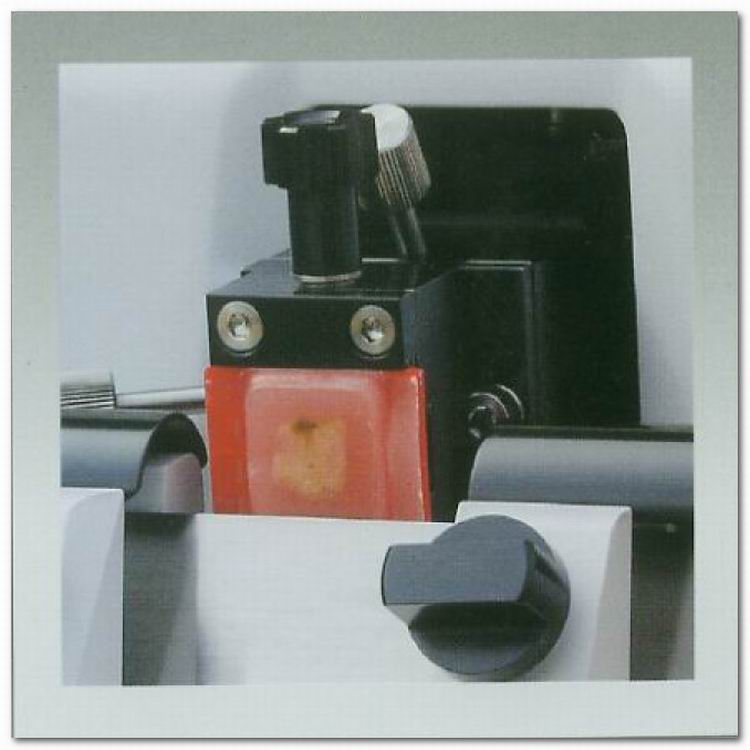

样品夹可在三维轴上任意调节， 便于调整样品切片角度。
无论使用标准切片刀或一次性刀片均可获得理想的切片。
右侧操作手抡可任意点锁定，提供最大的安全和方便。
全新的样品回缩功能，提高切片质量。
特设样品修整方式，保证不误切有用部分。
全新的行程极限自动报警，增强了整机的安全性。
液晶显示切片计数装置。
清洁方便的密封箱形罩。
主要技术参数
切片厚度范围： 1-30um(1um) 最大样本尺寸：40×52mm
修片厚度： 200um 样品回缩： 40um
样品上下垂直移位：52mm 样品前后水平移位：16mm
刀具角度调整范围：0-20度 刀具行程范围：30mm
整机尺寸：440×420×280mm 整机重量：42kg
JYD-325 type rotary slicer slicer factory direct pathological
The whole machine design into the concept of ergonomics , comfort is good, long time operation without fatigue .
The new flexible rails, micro feed mechanism can be permanently lubricated and adjusted automatically , without refueling and regular maintenance.
Sample holder can be adjusted in three axes , easy to adjust the angle of the sample slices .
Whether using a standard knife or disposable blade can get a good slice.
The right side of the lock operator at any point can be picked to provide maximum safety and convenience.
The new specimen retraction function, improve slice quality.
Ad hoc sample trimming , guaranteed not to miss cut the useful part .
The new stroke limit alarm, enhancing the machine's safety.
LCD slice counting device .
Easy to clean sealed box cover .
The main technical parameters
Slice thickness range : 1-30um (1um) Maximum sample size : 40 × 52mm
Repair thickness : 200um sample retraction : 40um
Samples and down vertical shift : 52mm samples before and after the horizontal shift : 16mm
Tool angle adjustment range :0 -20 degree cutter stroke range : 30mm
Machine size : 440 × 420 × 280mm Total Weight : 42kg
